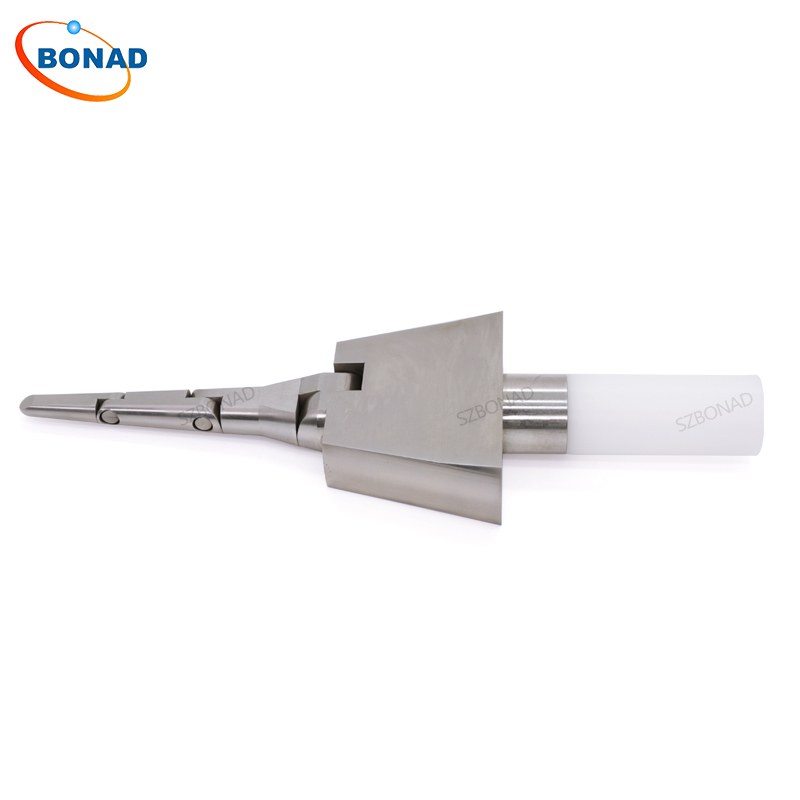

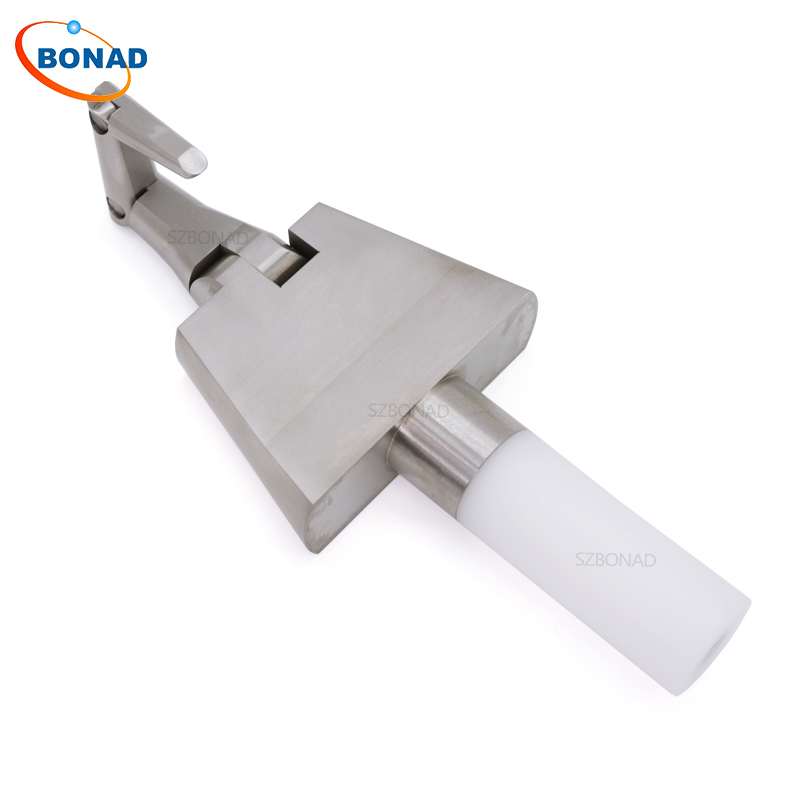

UL Test Bent Finger Probe/ PA100A Test Bent Finger Probe
Specification:
1, According to :
UL507 (PA100A), UL1017 figure 2, figure 6.5 UL1062, UL982 figure 7.1 and figure
1.2 UL474 figure 5.1 and figure 14, UL60065 UL6500 figure 14, Figure 7.2 and
figure 8.3 UL1278 UL1082
2, Mainly used for
the inspection to prevent the body from touching dangerous live parts,heating or hot parts,
mechanical components, as well as testing the solid foreign objects into the
equipments. It is necessary for protection against electric shock test of
household and similar electrical appliances
3，This is the "UL" test finger, researched and designed by UL and required by most UL Standards. Palm simulator and restricted joint movement simulates human finger movement. Made of all nylon. Bell-Core accessory available.The handle is made of nylon. The finger is made of stainless steel.
|
Test finger length
|
234mm
|
|
Knurled length
|
30/30/40mm
|
|
Material
|
stainless steel and nylon
|
|
Reference
|
UL507,UL982,UL1278,UL1062,UL1310,UL474,UL60065
|

|
