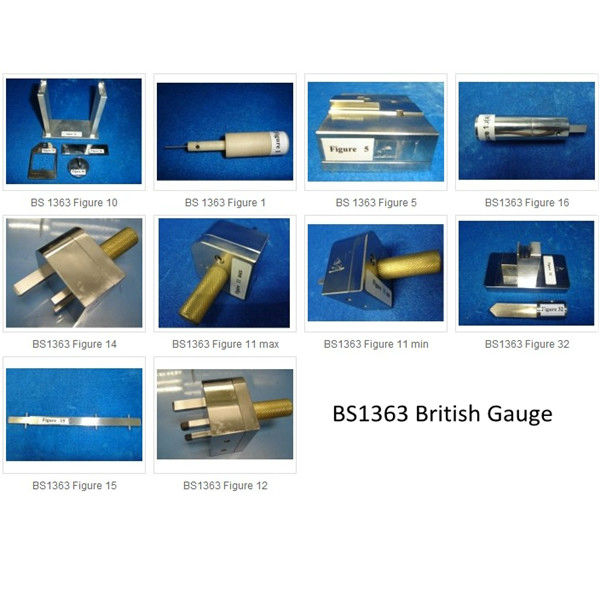

No.
|
Product name
|
standard
|
Quantity
|
|
1
|
Figure 1 — Test pin
|
BS1363-2-Fig1
|
1
|
|
2
|
2a)Apparatus for mechanical strength test on resilient covers 2b)Hardwood block for Figure 2a)
|
BS1363-2-Fig2
|
2
|
|
3
|
Figure 11 — Go gauge for socket-outlet
|
BS1363-2-Fig11
|
1
|
|
4
|
Figure 12 — Contact test gauge
|
BS1363-2-Fig12
|
1
|
|
5
|
Figure 13 — Test apparatus and circuit for use with contact and non-contact gauges
|
BS1363-2-Fig13
|
1
|
|
6
|
Figure 14 — Non-contact test gauge
|
BS1363-2-Fig14
|
1
|
|
7
|
Figure 15 — Turning moment gauge
|
BS1363-2-Fig15
|
1
|
|
8
|
Figure 16 — Withdrawal pull gauges for effectiveness of contact
|
BS1363-2-Fig16
|
1
|
|
9
|
Figure 18 — Apparatus for flexing test
|
BS1363-2-Fig18
|
1
|
|
10
|
Figure 19 — Solid link for test on fuse clips
|
BS1363-2-Fig19
|
1
|
|
11
|
Figure 20 — Tumbling barre
|
BS1363-2-Fig20
|
1
|
|
12
|
Figure 21 — Pendulum impact test
|
BS1363-2-Fig21
|
1
|
|
13
|
Figure 22 — Arrangements for mechanical strength test for portable socket-outlets
|
BS1363-2-Fig22
|
1
|
|
14
|
Figure 23 — Apparatus for pressure test
|
BS1363-2-Fig23
|
1
|
|
15
|
Figure 24 — Apparatus for ball pressure test
|
BS1363-2-Fig24
|
1
|
|
16
|
Figure 28 — Calibrated link
|
BS1363-2-Fig28
|
1
|
|
17
|
Figure 29 — Calibration jig for calibrated link
|
BS1363-2-Fig29
|
1
|
|
18
|
Figure 30 — Test plug for temperature rise
|
BS1363-2-Fig30
|
1
|
